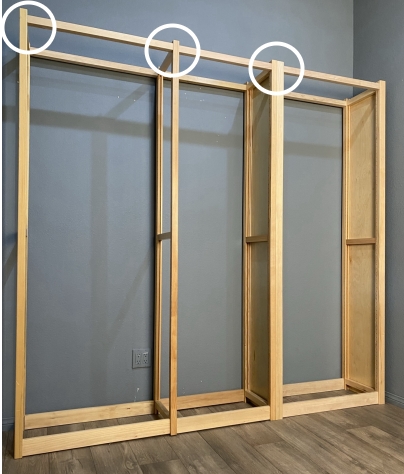

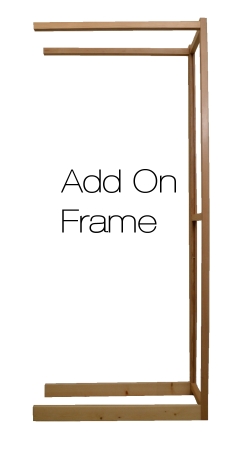

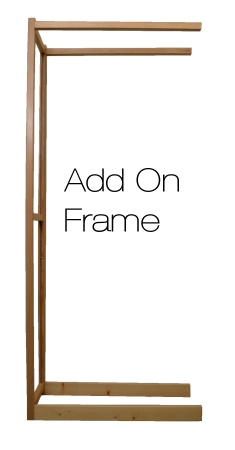

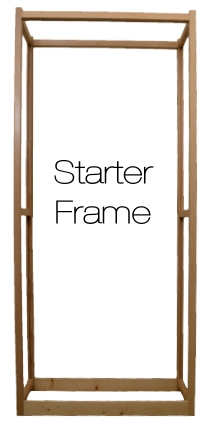

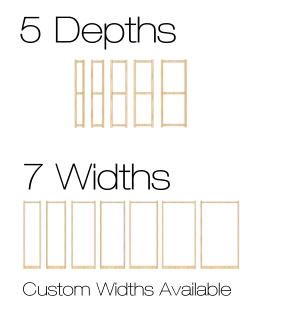

After measuring your wall, begin with a Starter Frame and then add on Add On Frames to best fit your space. It doesn't make any difference where you place a starter or add on. They are all modular parts. Note the specific widths below for the type of frame you are selecting:

Both Open Ends One Open, One Closed End Both Closed Ends Open End Closed End
A 24"frame would be 25 1/4" A 24"frame would be 25 7/8" A 24"frame would be 26 3/8" A 24"frame would be 24" A 24"frame would be 24 1/2"

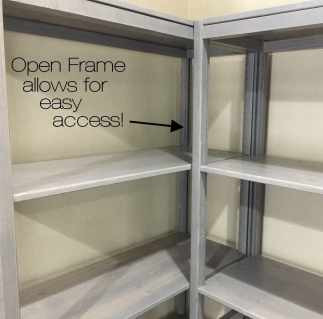

Note: Our closed end frames use a thicker upright. Open uprights are approximately 1 3/8"thick while Closed uprights are just over a half inch thicker at 1 7/8".
All sizes are approximate within 1/16" to 1/8"

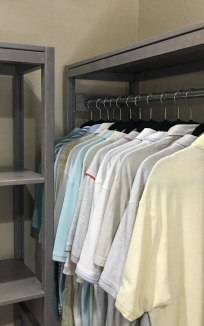

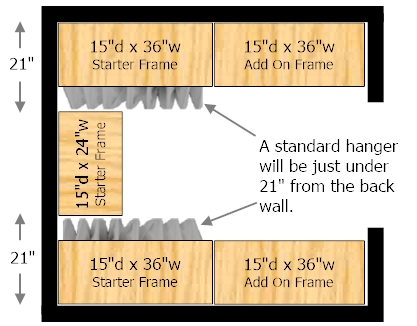

Most common solution:

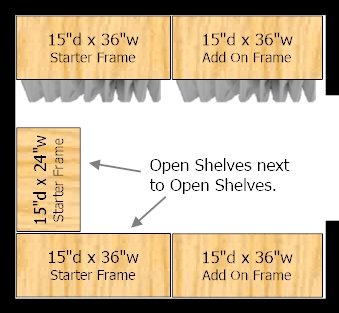

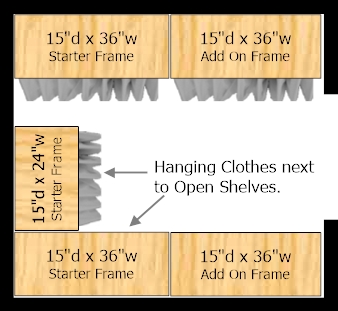

Alternate solution:

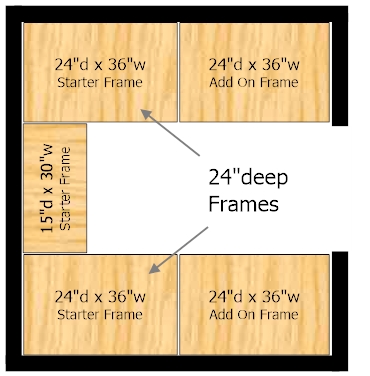

Alternate solution:
